LNBs for digital satellite reception
An LNB receives the satellite signal and forwards it to the receiving device – reliable, low-noise and suitable for a variety of applications.

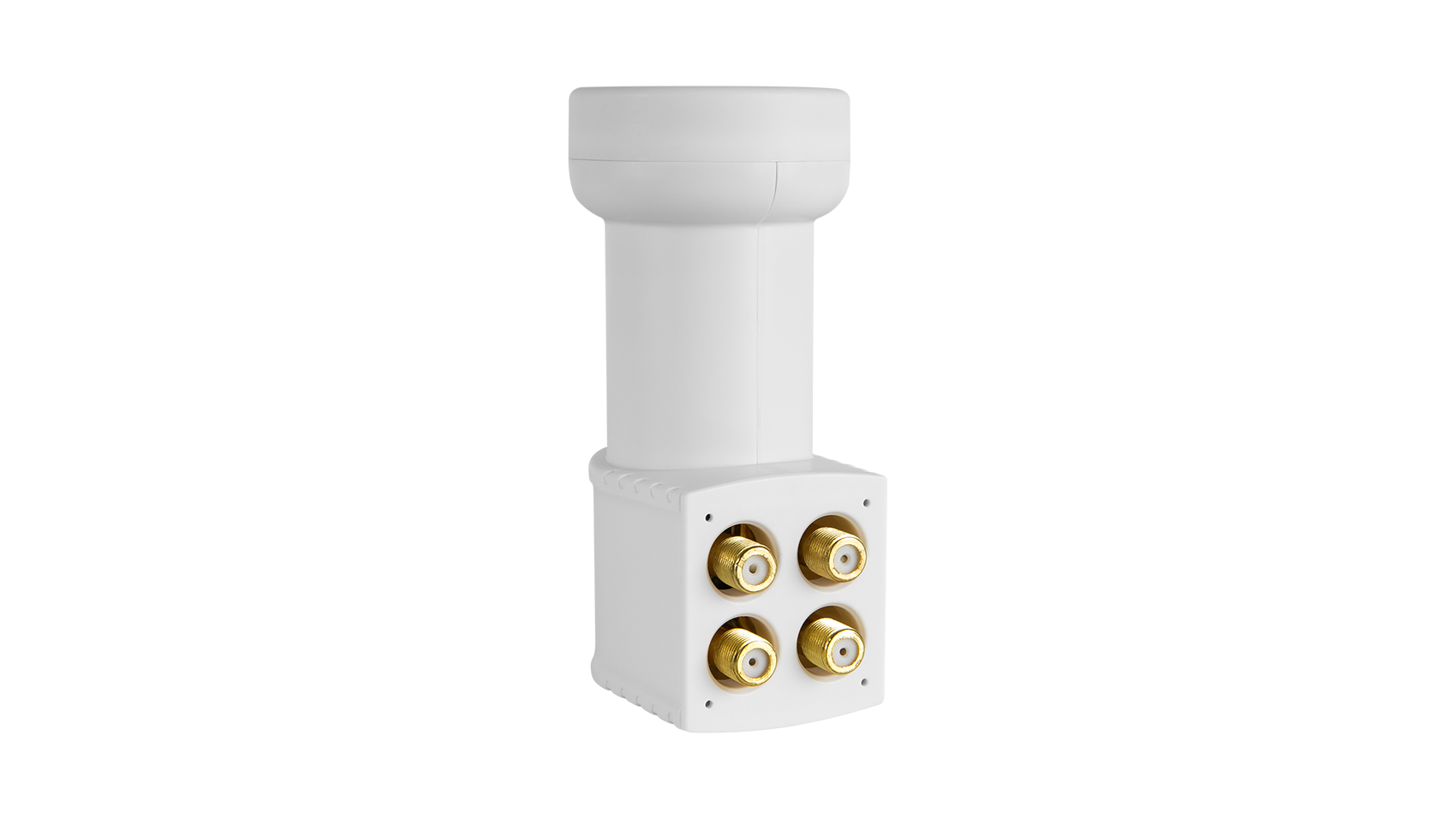

High-quality digital satellite reception with Megasat LNBs
The Megasat HD professional LNB ensures crystal-clear picture and sound quality – designed for the highest demands in digital satellite reception. Its robust construction guarantees reliable operation even in extreme weather conditions, from freezing cold to intense heat.
Gold-plated F-connectors provide optimal signal transmission, while the low noise figure of only 0,1 dB ensures the best reception values and brilliant picture quality.
The LNB enables reception of one satellite and supply of four subscribers – ideal for households with multiple receivers.
Technical Specifications
- Suitable for 4 participants
- 60dB gain
- Integrated LTE filter
- Input frequency: 10.7 – 12.75 GHz
- Excellent noise figure of 0.1 dB
- Feed diameter: 40 mm
- Extremely heat and cold resistant
- Low energy consumption
- Long-lasting electronics
- Gold-plated connections
- Weather protection for F-connectors
Connections
- 4x F-connector
Delivery
- HD-Profi Quad LNB
- installation Guide
Dimensions / weight
- Dimensions: 120 x 50 x 65 mm (W/H/D)
- Weight: 141 g (net)
Identification data
- Item No .: 0401098
- EAN: 4046173105339
