Coaxial cable with optimal conductivity – reliable for every installation
Excellent electrical properties, highest shielding and tested quality according to international standards – Megasat coaxial cables stand for durable and secure connections.
Coaxial cables with excellent conductivity – reliable, safe and durable
Megasat coaxial cables meet the highest requirements and combine excellent electrical properties with a particularly high degree of shielding. Continuous quality controls according to international standards regarding performance, safety, and environmental compatibility guarantee consistently high product quality and a long service life.
The cable complies with the legal fire protection class Eca and is free of hazardous pollutants – ideal for safe indoor use.
Practical: The outer jacket is provided with meter markings, which allows easy and precise cutting of the desired cable length.
Technical data (antenna)
- Suitable for satellite / cable TV
- Screening factor: 130 dB

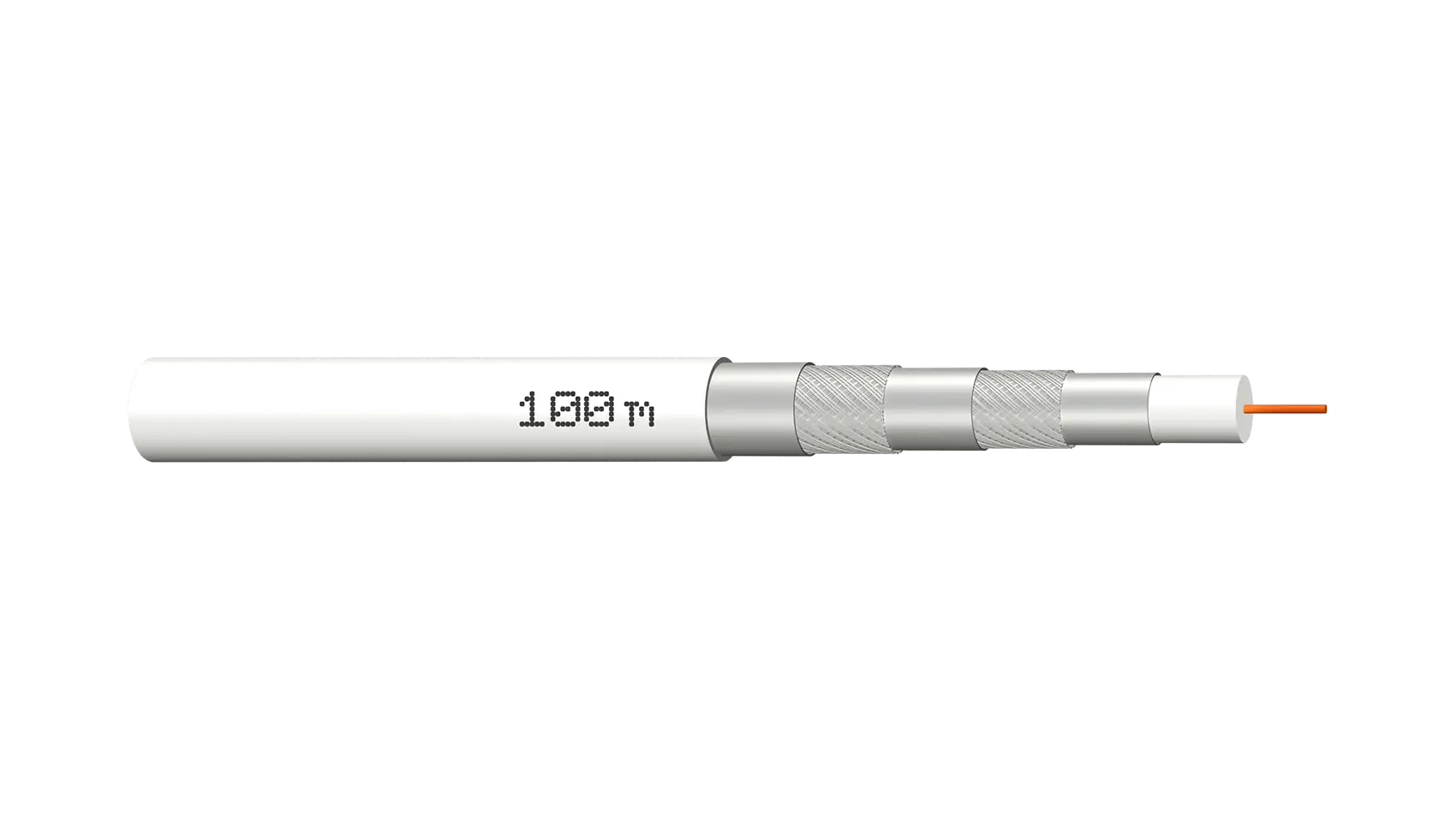

- Shielding: 5-fold
- Outer sheath: Ø 7,0 mm
- Outer conductor: Ø 5,3 mm
- Insulation: Ø 4,0 mm
- Inner conductor: Ø 0,9 mm CCS
- Braid: 2x 48 x 0,12 al
- Aluminum foil: 3x laminated
- Impedance: 75 Ω
- Meter imprint on the cable
- Fire protection class: Eca (DOP: 1-E-034-00006)
- Hazardous substances: none
- Length: 100 meters
Measurement data
Attenuation at 20° C at 100 m
- at 800 MHz: 21 dB
- at 2150 MHz: 35 dB
Return loss
- at 800 MHz: > 26 dB
- at 2150 MHz > 20 dB
Other
- 4K compatible
- Full HD compatible
- RoHS compliant
- ISO 9001
Delivery
- Coaxial cable Fiveshield 135 (reel)
Dimensions / weight
Kitchen sink
- Dimensions: 275 x 275 x 110 mm (W/H/D)
- Weight: 4 kg (net)
Identification data
Kitchen sink
- Item No .: 100187
- EAN: 4046173105100
