LNBs for digital satellite reception
An LNB receives the satellite signal and forwards it to the receiving device – reliable, low-noise and suitable for a variety of applications.
High-quality digital satellite reception with Megasat LNBs

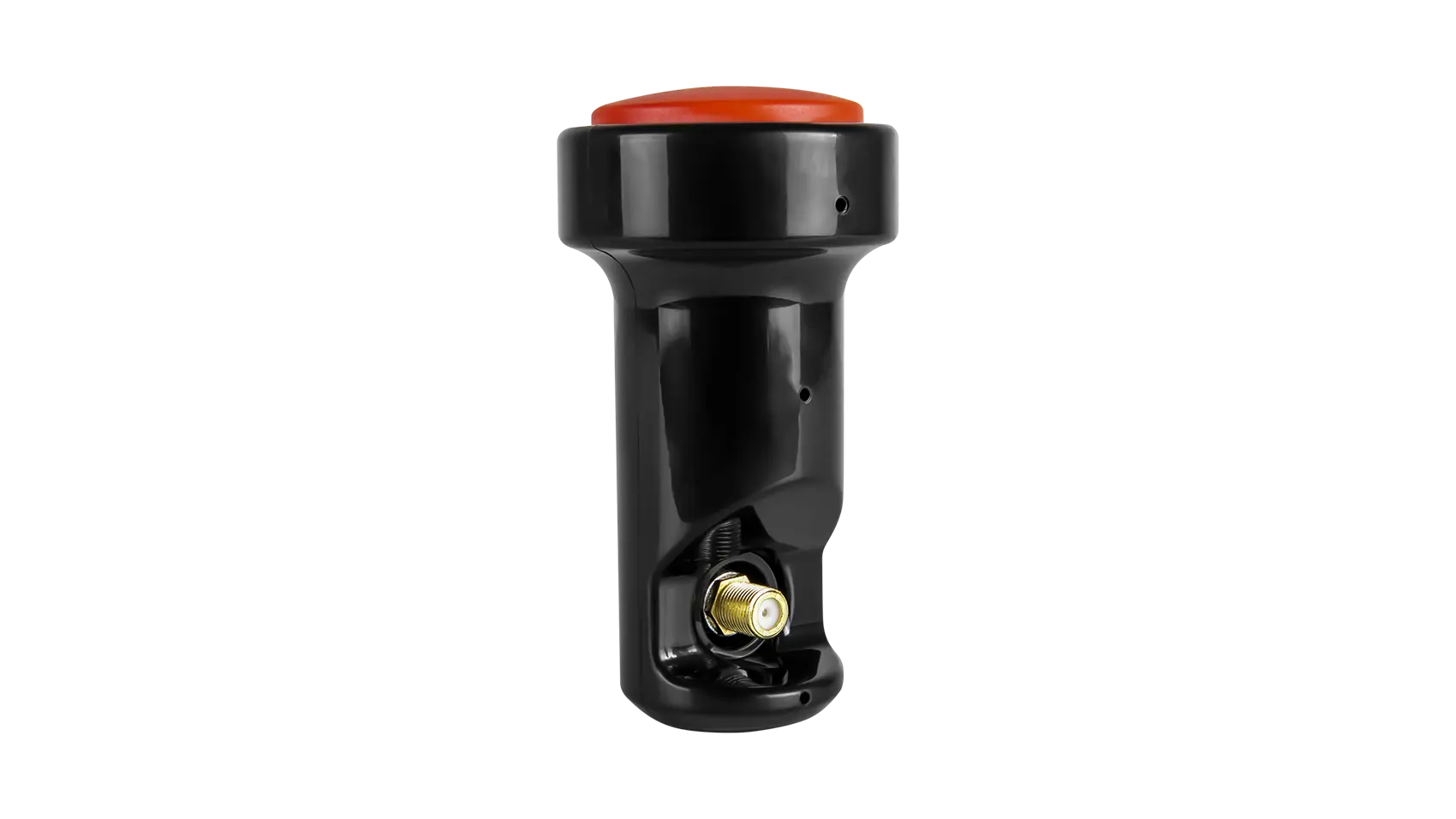

The Megasat Diavolo LNB ensures razor-sharp picture and sound quality – developed for the highest demands in digital satellite reception. Its robust construction guarantees reliable operation in extreme weather conditions, from icy cold to intense heat.
Gold-plated F-connectors provide optimal signal transmission, while the low noise figure of only 0,1 dB ensures the best reception values and brilliant picture quality.
The LNB enables the reception of one satellite and the supply of one subscriber.
Specifications
- Suitable for 1 participants
- 60dB gain
- Integrated LTE filter
- Input frequency: 10.7 – 12.75 GHz
- Excellent noise figure of 0.1 dB
- Feed diameter: 40 mm
- Extremely heat and cold resistant
- Low energy consumption
- Long-lasting electronics
- Gold-plated connections
- Weather protection for F-connectors
Connections
- 1x F-connector
Delivery
- Single LNB Diavolo
- installation Guide
Dimensions / weight
- Dimensions: 50 x 50 x 150 mm (W/H/D)
- Weight: 74 g (net)
Identification data
- Item No .: 0400011
- EAN: 4046173100075
