PoE – power and data over one cable
Easier installation: Up to 8 cameras are supplied with power and data via a single LAN cable – without the need for a separate power line.
Power over Ethernet (PoE) – power and data over one cable
The integrated PoE switch is ideal for camera installations in locations without a separate power supply. Data and power are transmitted simultaneously over a single LAN cable, enabling particularly simple and cost-effective network installation or expansion.
The power supply of all connected devices is automatically adjusted and is compatible with numerous IEEE standards. Connections are available for up to 8 PoE-enabled cameras (max. 30 watts per port). Non-PoE-enabled devices still require a separate power supply.
Specifications
- Transfer speed: 10/100 Mb/s
- Support for standard and extend network mode
- Maximum output power: 30 watts / PoE port
- Maximum total power: 58 W
- Switching capacity: 1,8 Gbit/s
- Compatible with the following standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE802.3at, IEEE 802.3x
- Transmission speed:
Ethernet: 10 Mbps (half duplex) / 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex) / 200 Mbps (full duplex) - Transmission medium:
Ethernet: Cat 3 or better UTP / STP
Fast Ethernet: Cat 5 or better UTP / STP - PoE power supply mode: 8-pin
- 4K MAC address table and MAC address learning
- LEDs: Power, Link/Act, PoE
- Temperature range: 0° C – 40° C
- Humidity: 10% ~ 90% RH (non-condensing)
Connections

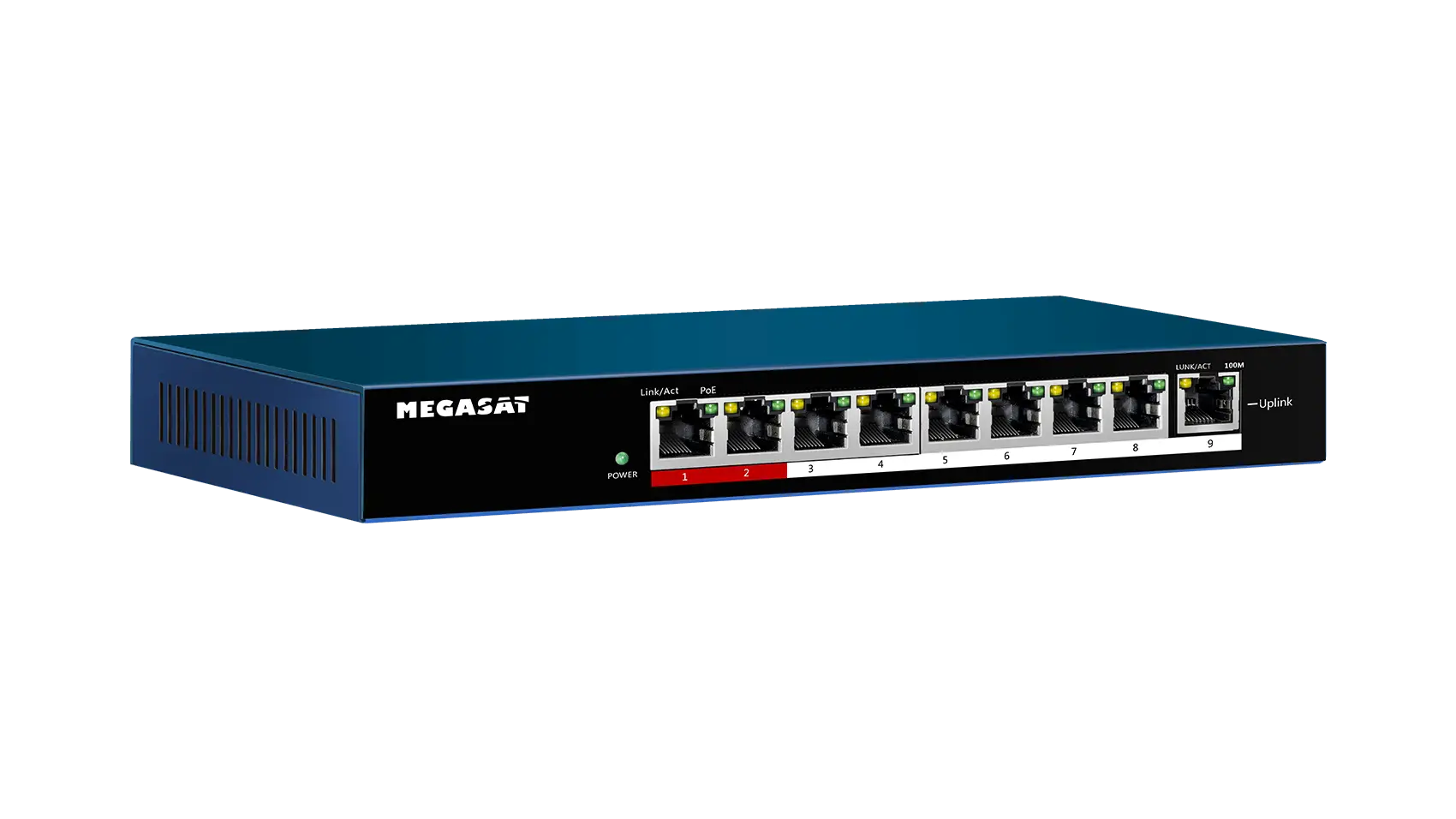

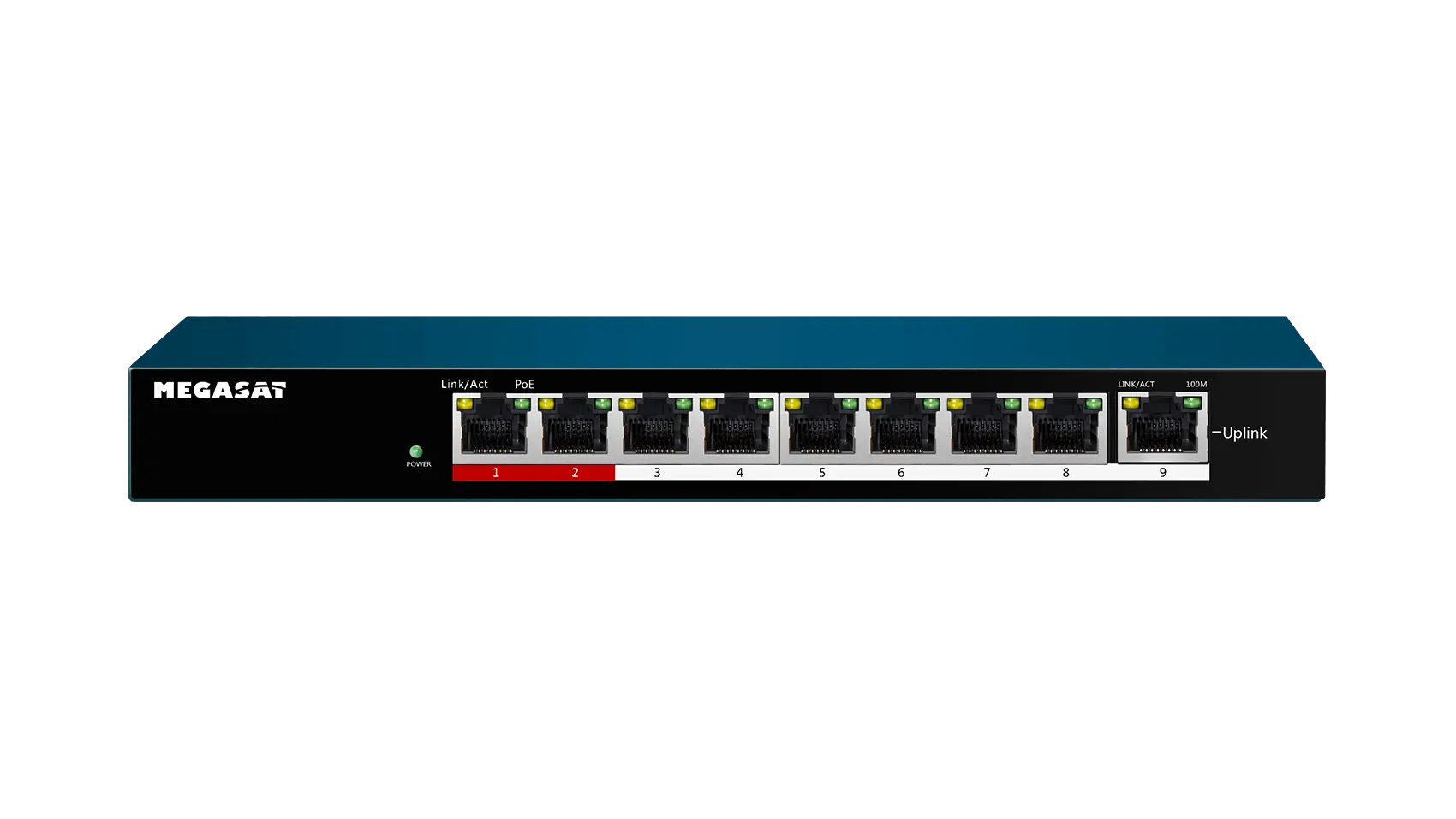

- 9x Base-TX Ethernet ports
(Port 1-2 = high priority) - 1x mains connection for power supply
Power Supply
- Power supply: AC 100~240 Volt, DC 51 Volt, 1.25 A
- Power consumption: approx. 58 watts
Delivery
- Switch PoE 900
- Power Supplies
- Manual
Dimensions / weight
- Dimensions: 178 x 26 x 106 mm (W/H/D)
- Weight: 410 g (net)
Identification data
- Item No .: 0900176
- EAN: 4046173107715
