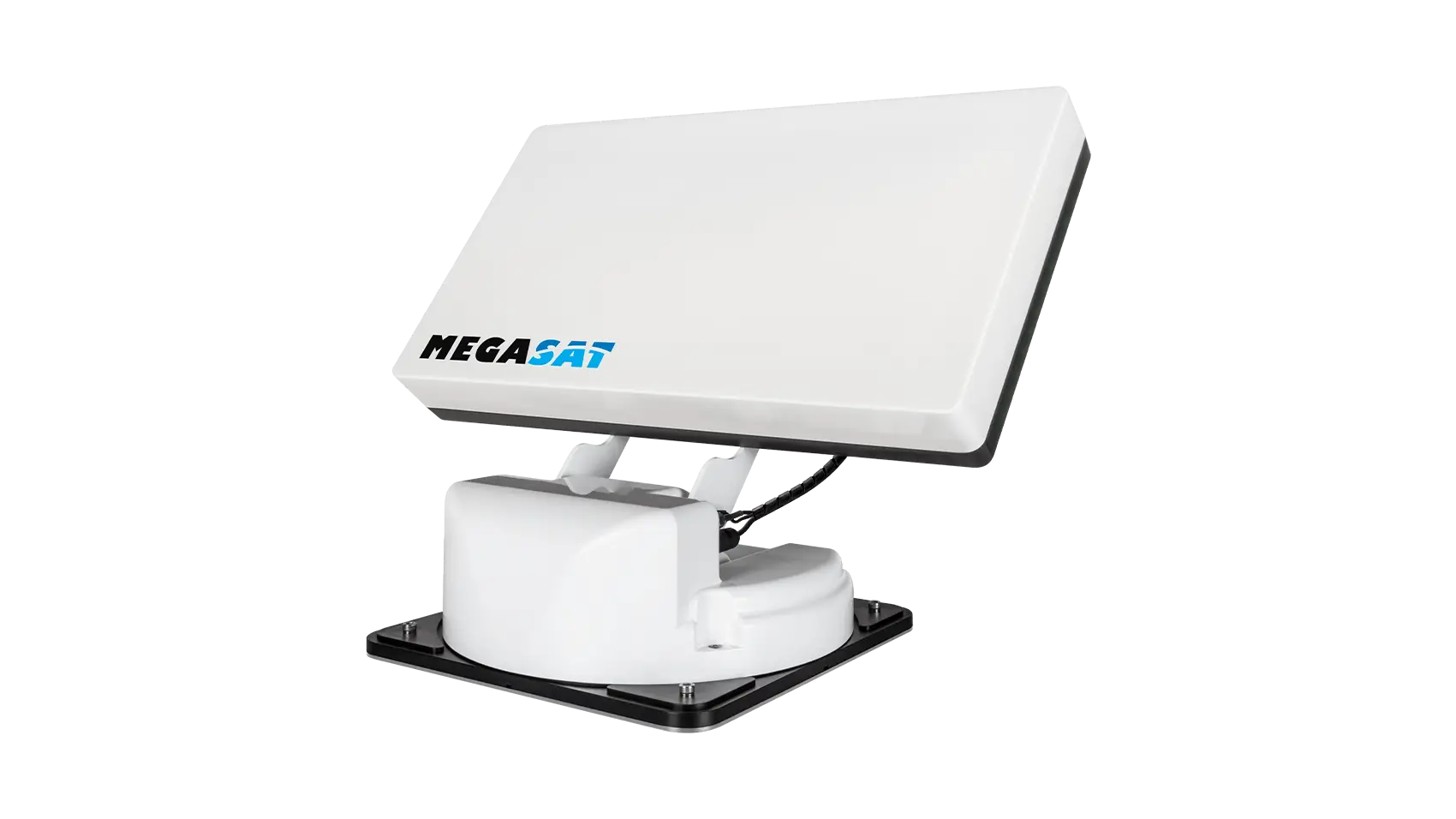

megasat_traveller_man_2_front view

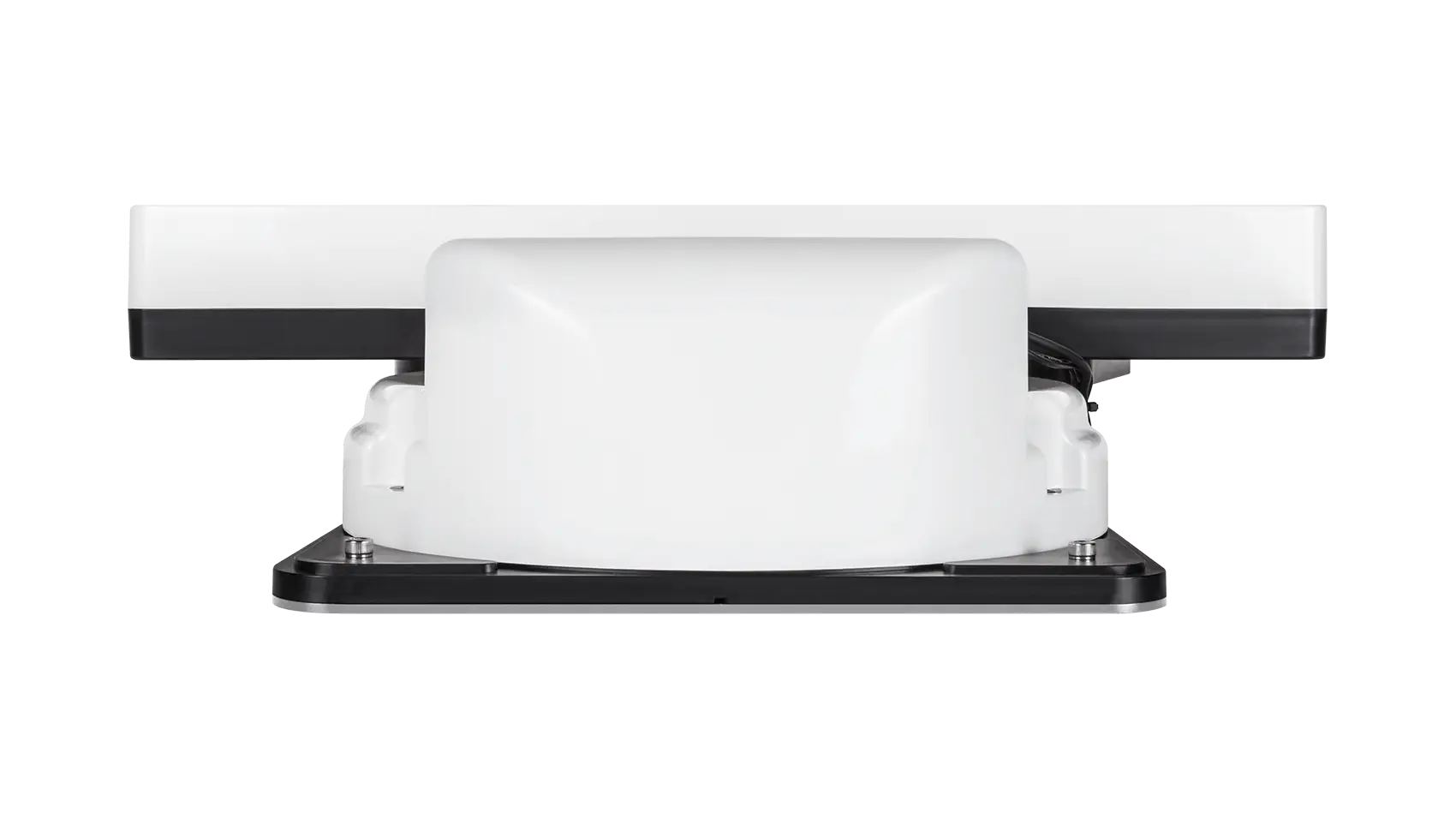

megasat_traveller_man_3_front view_retracted

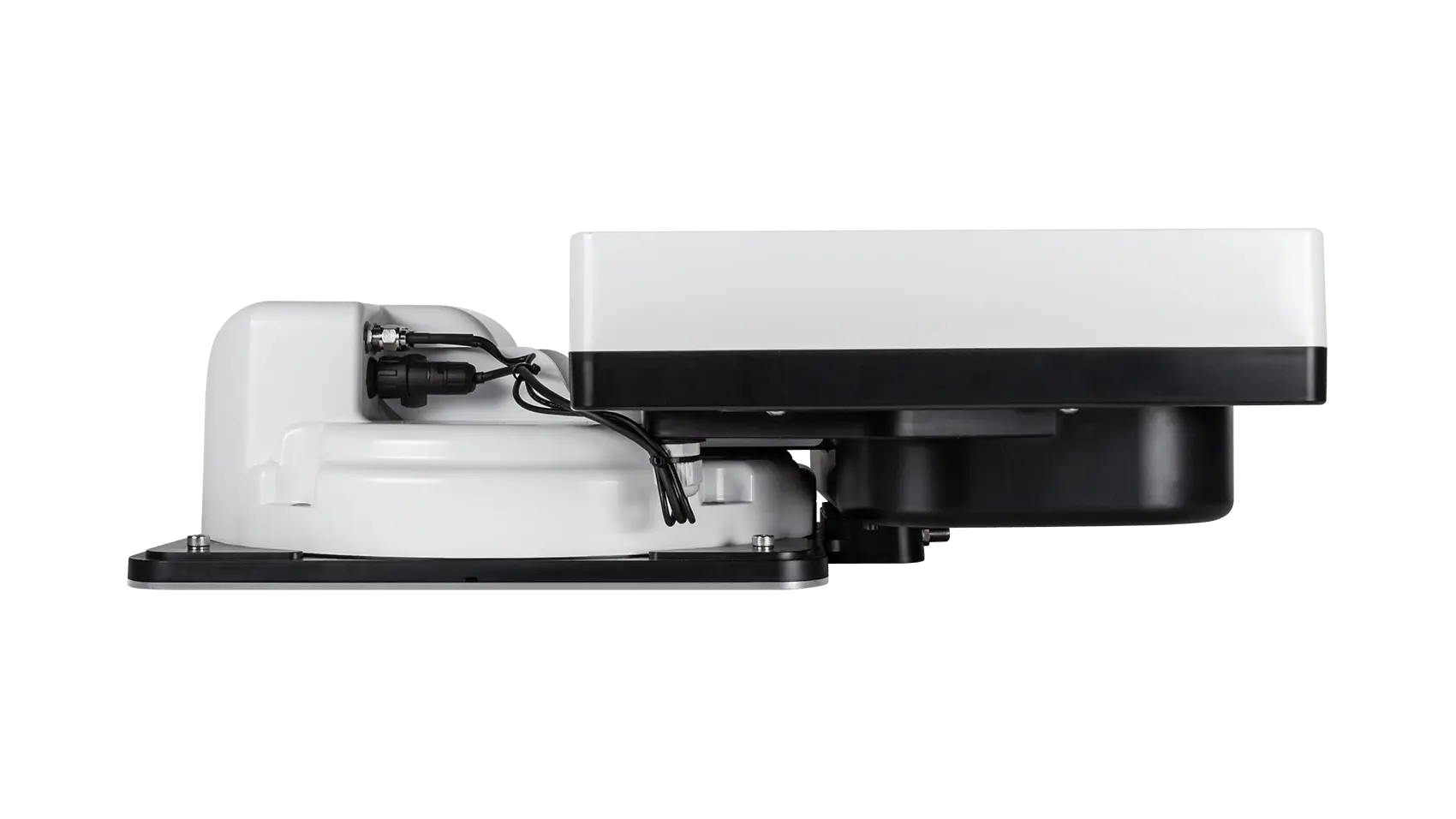

megasat_traveller_man_3_side view_retracted
megasat_smart_idu_front view
megasat_smart_idu_rear view
megasat_traveller_man_3_connection example

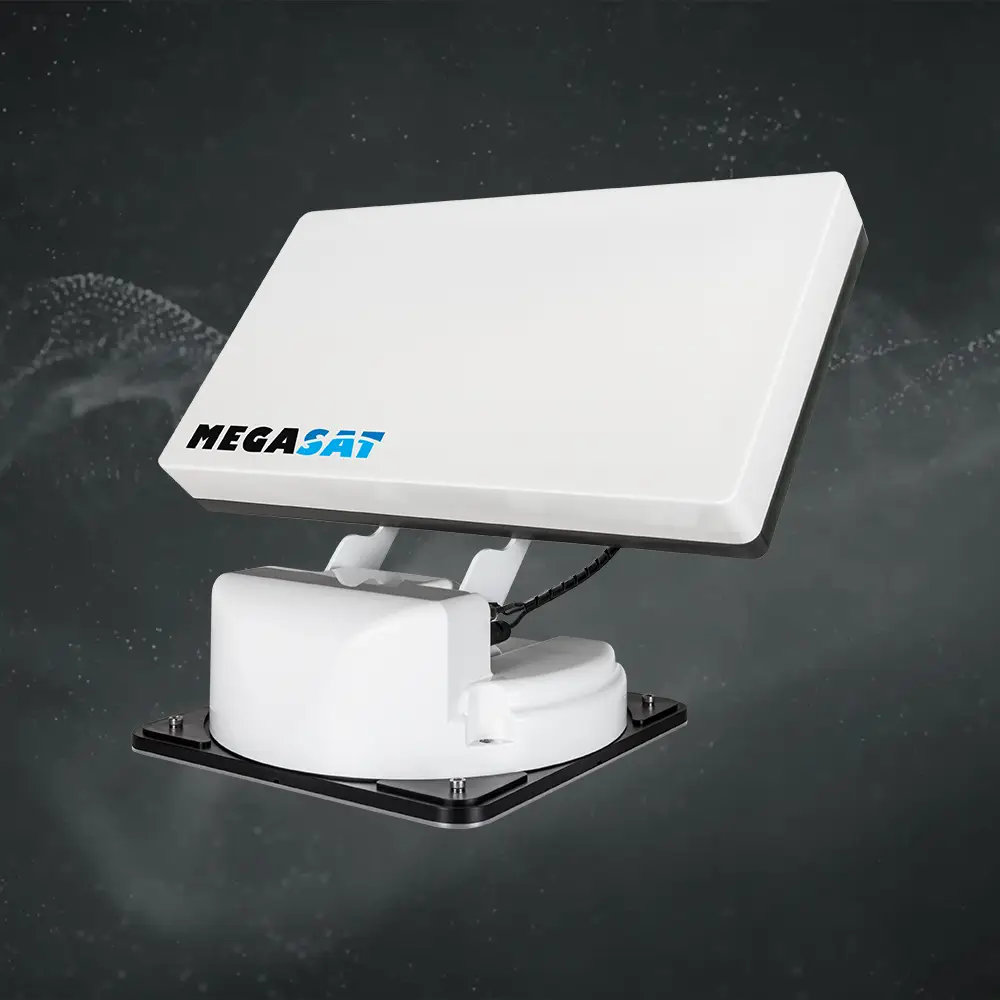

Traveller-Man 3

Satellite antenna with twin connection and Auto-Skew function. Very low installation height of only 14 cm when retracted. Smart control unit with free app for Firmware updates and satellite selection. Suitable for fixed mounting or optional with mobile kit 3 as portable antenna.

  • Description

Satellite antenna with low installation height

The extremely flat satellite antenna aligns itself fully automatically to the desired satellite. Due to the flat design of just 14.5 cm, the antenna can be ideally positioned on a caravan or motor home and hardly affects the overall height of the vehicle. Despite the small size, the antenna Picturescan receive in best quality and fits with the small dimensions in every trunk.

The Traveller-Man 3 can be permanently mounted on vehicles using the supplied mounting plate. A Mobile Kit 3 for mobile use is available separately.

Smart control unit

The antenna can be directed to the desired satellite via the smartphone or tablet. The matching app is available free of charge in the App Store or Google Play Store. Alternatively, satellite selection is also possible on the control unit itself. But not only the antenna control is app-controlled, Firmware updates can also be easily uploaded via the app. Previously, a computer and a USB stick were required for this purpose, but in future a command via the app will be sufficient.

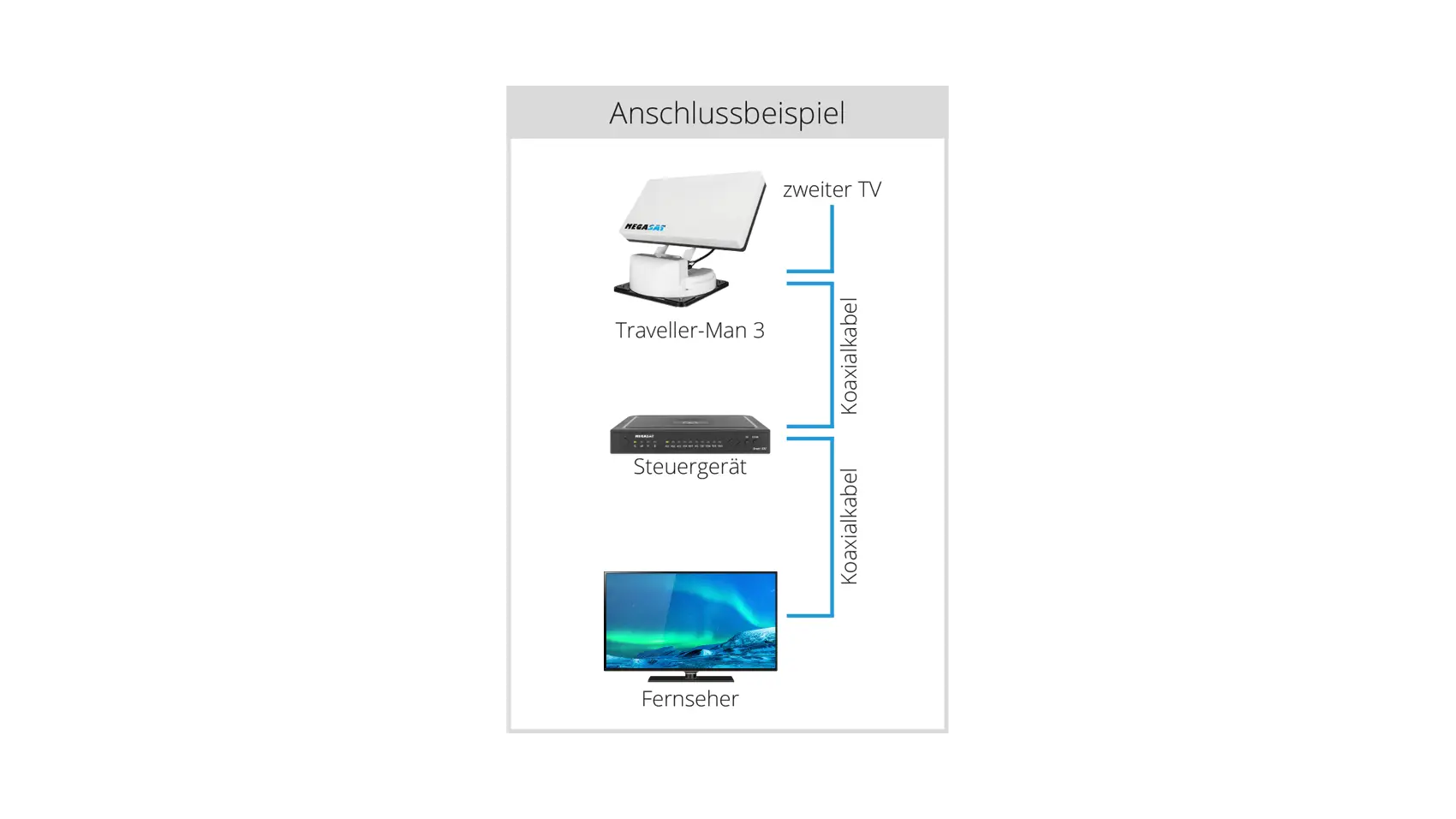

Twin connection for a further participant

With the integrated twin connection, you can operate two receivers or two TVs independently of each other if required. All you need to do is connect the antenna directly to the second receiver using a coaxial cable.

Auto-Skew-function

The Auto-Skewfunction allows a correct polarization setting of the LNBs. The further away you are from Central Europe, the more the LNB must be rotated to compensate for the curvature of the earth and to continue receiving the satellite signal at full level. This works fully automatically and thus guarantees first-class reception at all locations in Europe.

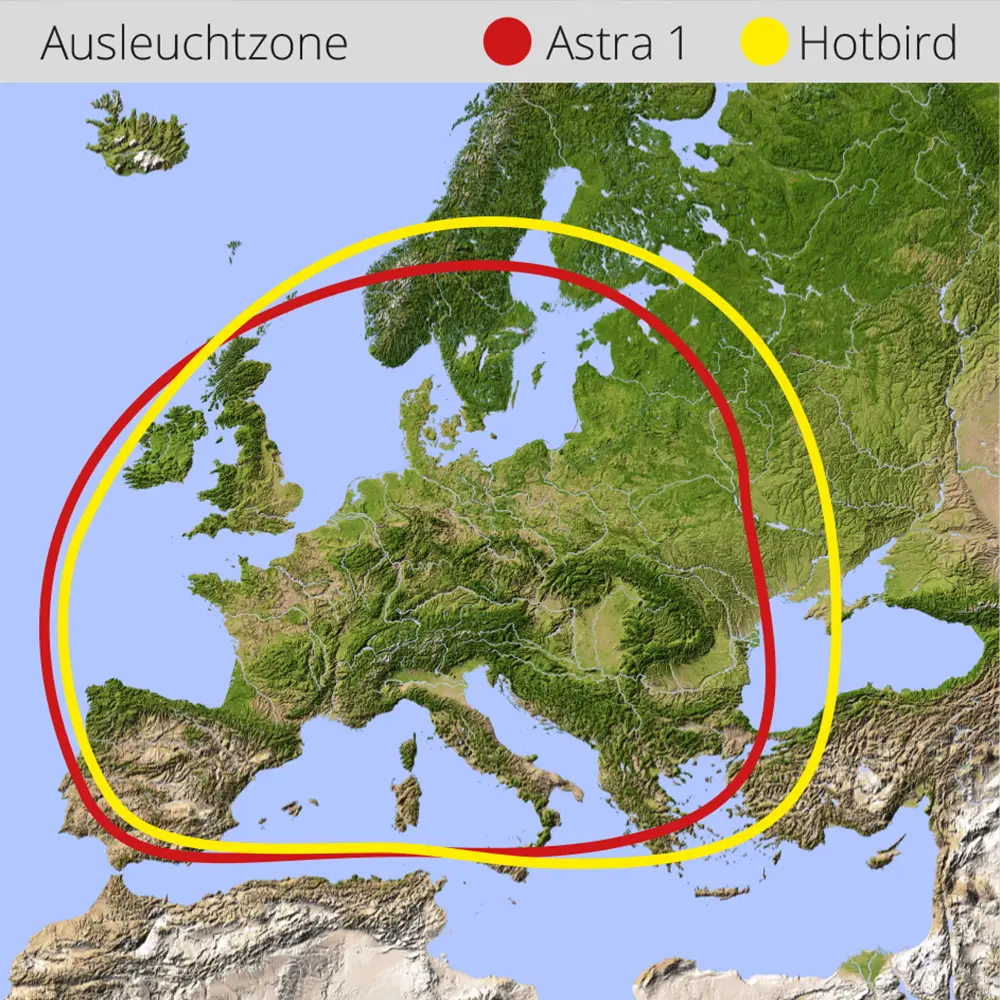

Reception ranges

Reception is possible from all German television and radio stations in the most important holiday destinations in Europe. Reception interference may occasionally occur on the edge of the footprint. One reason for this is that the range of the individual stations varies and the current weather conditions, such as rain, snow or fog, can reduce reception.

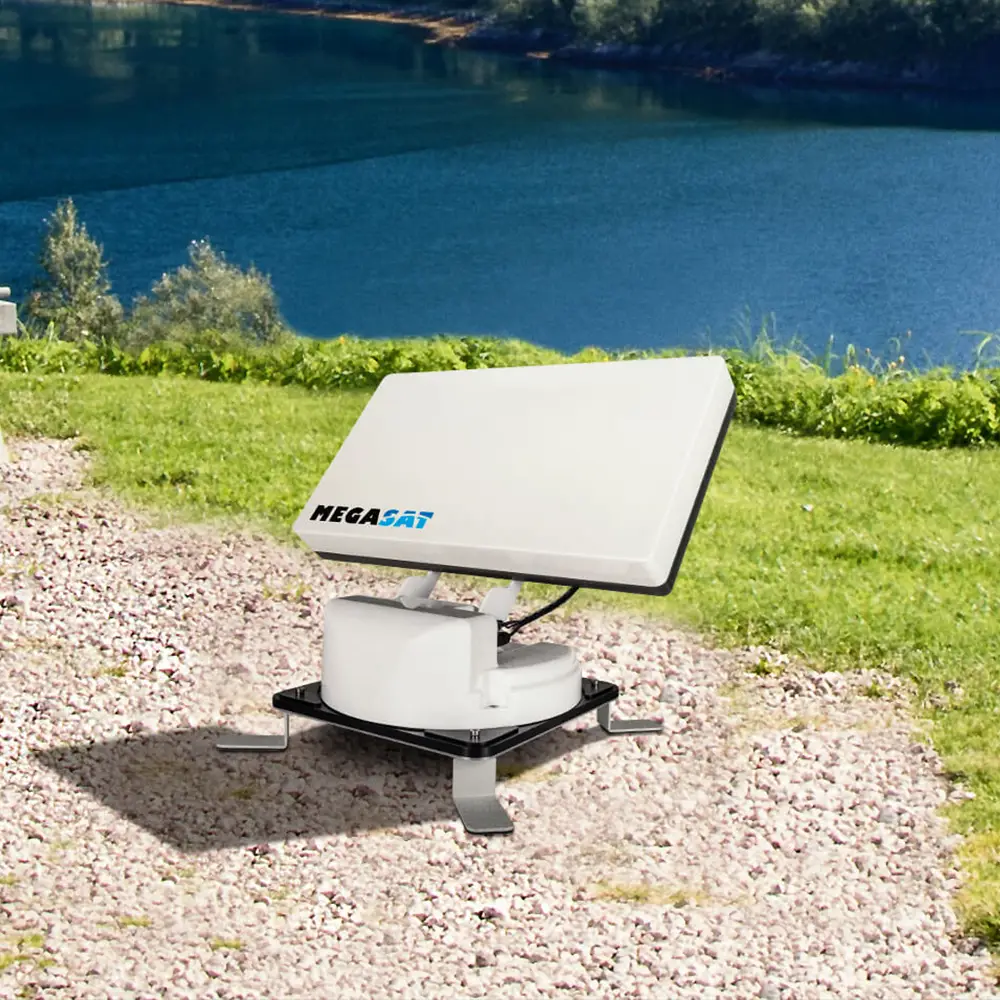

Optionally available Mobile Kit 3

The Mobile Kit 3 for the Traveller-Man 3 is available separately. It consists of four aluminium feet and a matching mounting plate. On the underside of the feet, the rubber coating ensures a stable hold on all smooth surfaces.

  • Technical data
  • Scope of delivery
  • Logistical data
  • Product video

Technical data

Technical data

  • Antenna type: Flat antenna
  • LNB type: Universal LNB
  • Maximum number of participants: 2
  • Frequency band: Ku-band
  • Input frequency range: 10.7 GHz - 12.75 GHz
  • Polarization: V/H
  • Signal amplification: 33 dBi@ 12.7 GHz
  • Minimum EIRP (footprint): 49 dBW
  • Elevation (inclination): 0° - 90°
  • Azimuth (rotation): 365°
  • Auto-Skew-function
  • 2-axes DC motor
  • Control unit with Bluetooth® module (future Firmware updates via a mobile device)
  • Free app for iOS and Android
  • Temperature range: -25° C to +70° C
  • Power supply: DC 12 Volt
  • Receiving unit size: 525 x 290 mm (W/H)

Programmed satellites

  • Astra 1 (19.2° east)
  • Astra 2 (28.2° east)
  • Astra 3 (23.5° east)
  • Astra 4 (4° east)
  • Hotbird (13° East)
  • Hispasat (30° West)
  • Eutelsat 9 B (9° East)
  • Eutelsat 5 West (5° West)
  • Türksat (42° east)
  • Thor (0.8° west)

Scope of delivery

Scope of delivery

  • Traveller-Man 3
  • Control unit
  • 1m coaxial cable
  • 10m coaxial cable
  • Roof lead-through
  • User manual

Logistical data

Product

Antenna

  • Width: 525 mm
  • Height: 145 mm
  • Depth: 480 mm
  • Weight: 8,0 kg (net)

Control unit

  • Width: 195 mm
  • Height: 30mm
  • Depth: 150 mm
  • Weight: 360 g (net)

Box

  • Width: 590 mm
  • Height: 230 mm
  • Depth: 560 mm
  • Weight: 12,3 kg (gross)

Miscellaneous

  • Art-No.: 1500196
  • EAN: 4046173108378

Product video

Downloads

Product sheet

Traveller-Man 3 (Product sheet)

Manual

Traveller-Man 3 (User manual)
Version 1.1

Firmware / Software

App for iOS devices

App for Android devices

Pictures

Traveller-Man 3 (Pictures)
