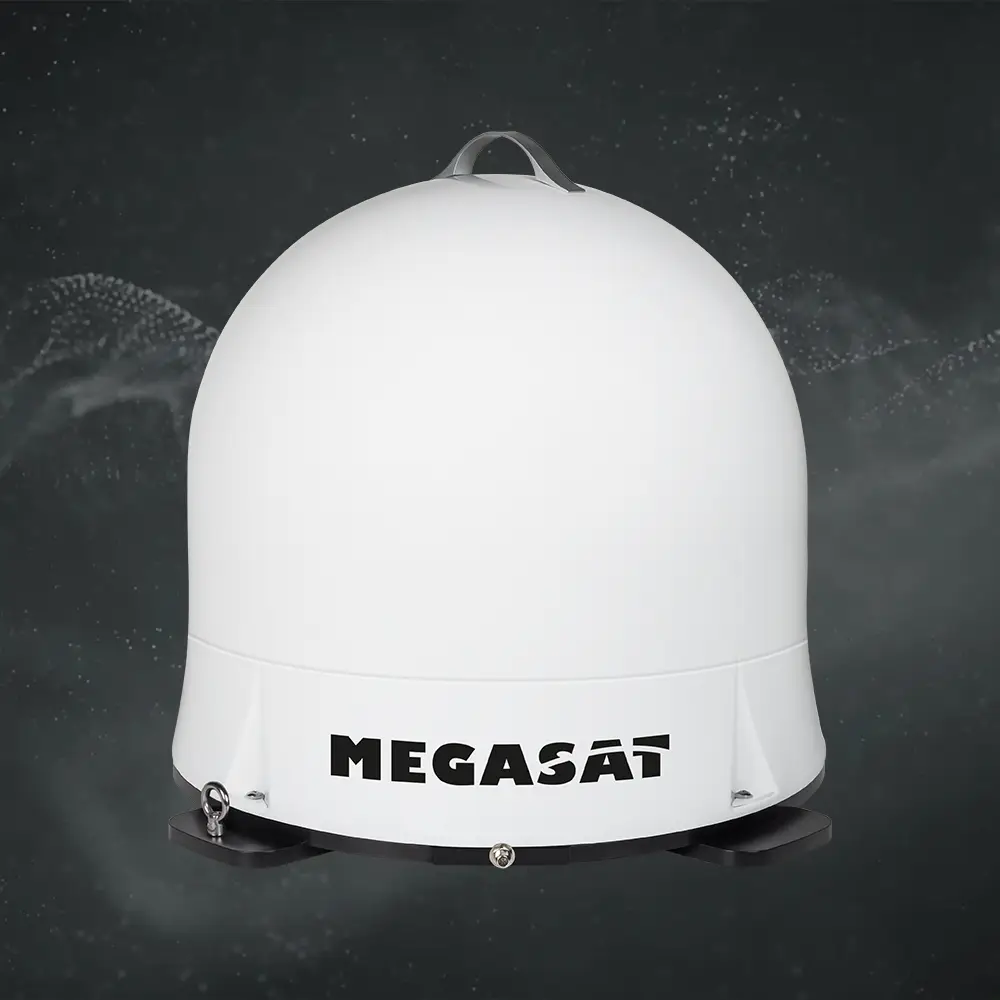

Campingman Portable ECO

Mobile satellite antenna with single connection. No external power source required. Programmed for Astra 19° East.

Future-proof technology
no transponder update required

Mobile satellite antennas – flexible, compact, fully automatic

Our portable satellite antennas are ideal for camping, traveling, or flexible use on the go. Thanks to their compact design and automatic satellite search at the push of a button, they're ready for use quickly – without any complicated alignment. Obstacles such as trees can be easily avoided. Simply connected via a coaxial cable, TV and radio signals can be received reliably.

Flexible, compact, energy-saving – without any external control unit

The mobile satellite antenna boasts a compact design and is ready for use in no time. Simply place it in a location with a clear view of the satellite—trees or other obstacles can be easily avoided.

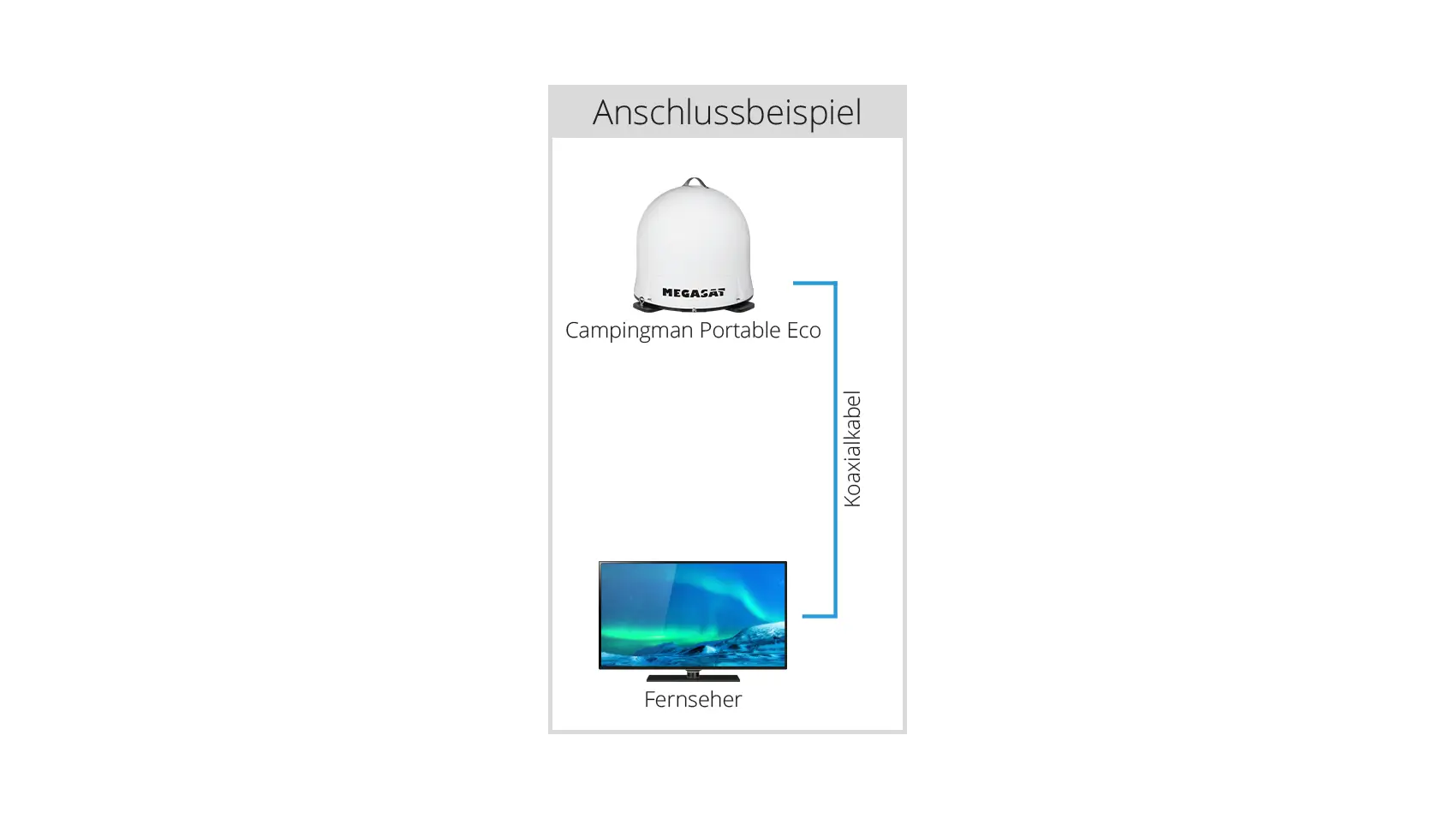

What's special about it: No external power source or separate control unit is required for operation. The antenna is powered directly from the TV or receiver via the coaxial cable. Turn on the device – and the automatic satellite search begins (default setting is Astra 1).

The sturdy plastic cover reliably protects against weather influences and damage – perfect for mobile use on the go.

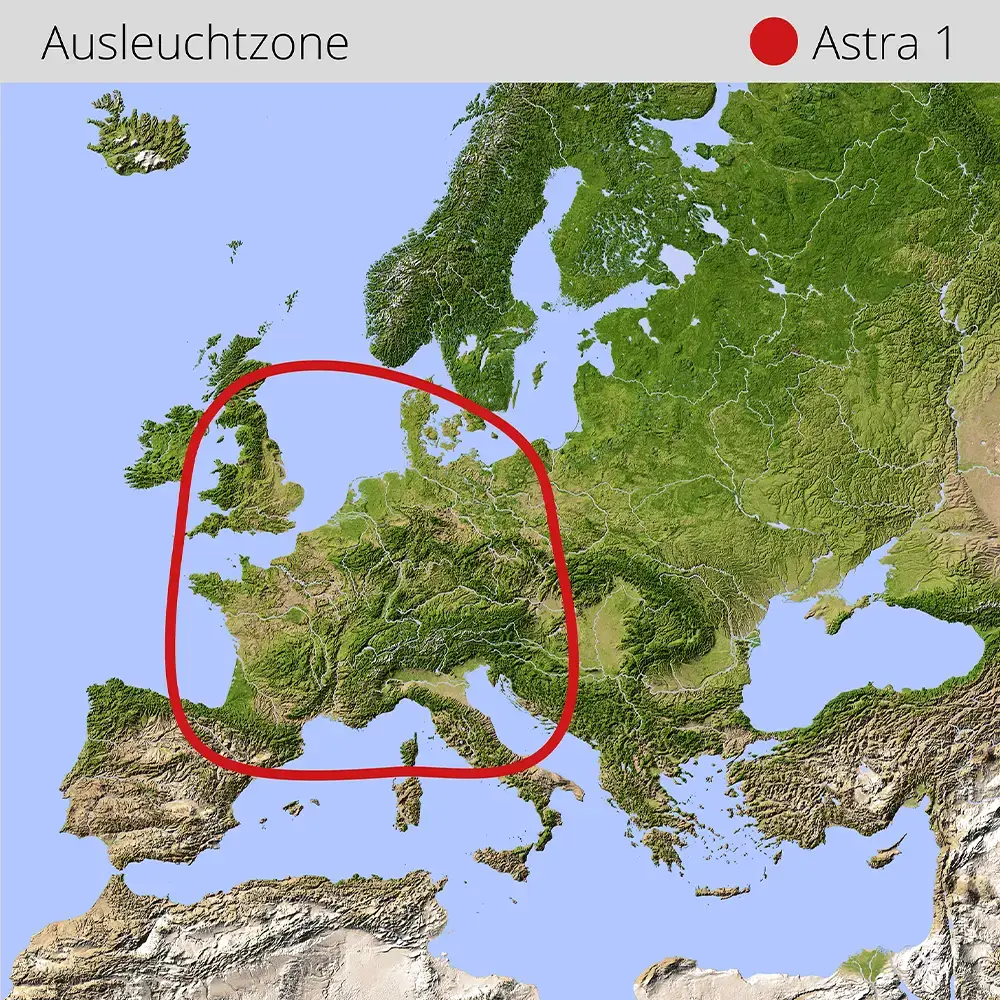

Reception ranges – reliable reception on vacation

With this satellite antenna, you can receive all major German TV and radio stations in Europe's most popular holiday destinations. Stable reception is easily achieved within the main coverage area. However, in peripheral areas, interference may occasionally occur – due to the varying ranges of the satellite signals as well as weather conditions such as rain, snow, or dense fog, which can impair signal quality.

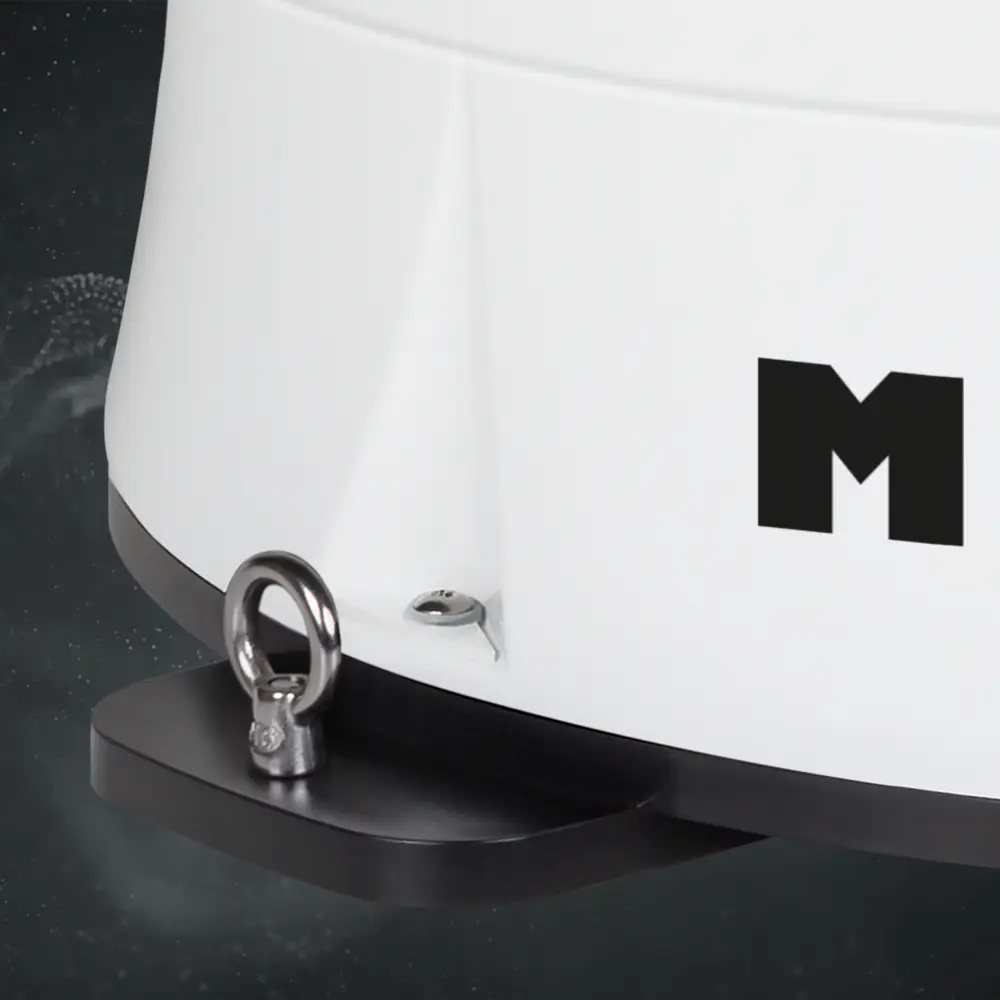

Anti-theft protection – for more safety on the go

To protect against theft, the antenna features a sturdy metal eyelet to which a steel cable or security chain can be attached. This reliably secures the antenna against unauthorized removal—ideal for use at campsites or freely accessible parking spaces.

Specifications

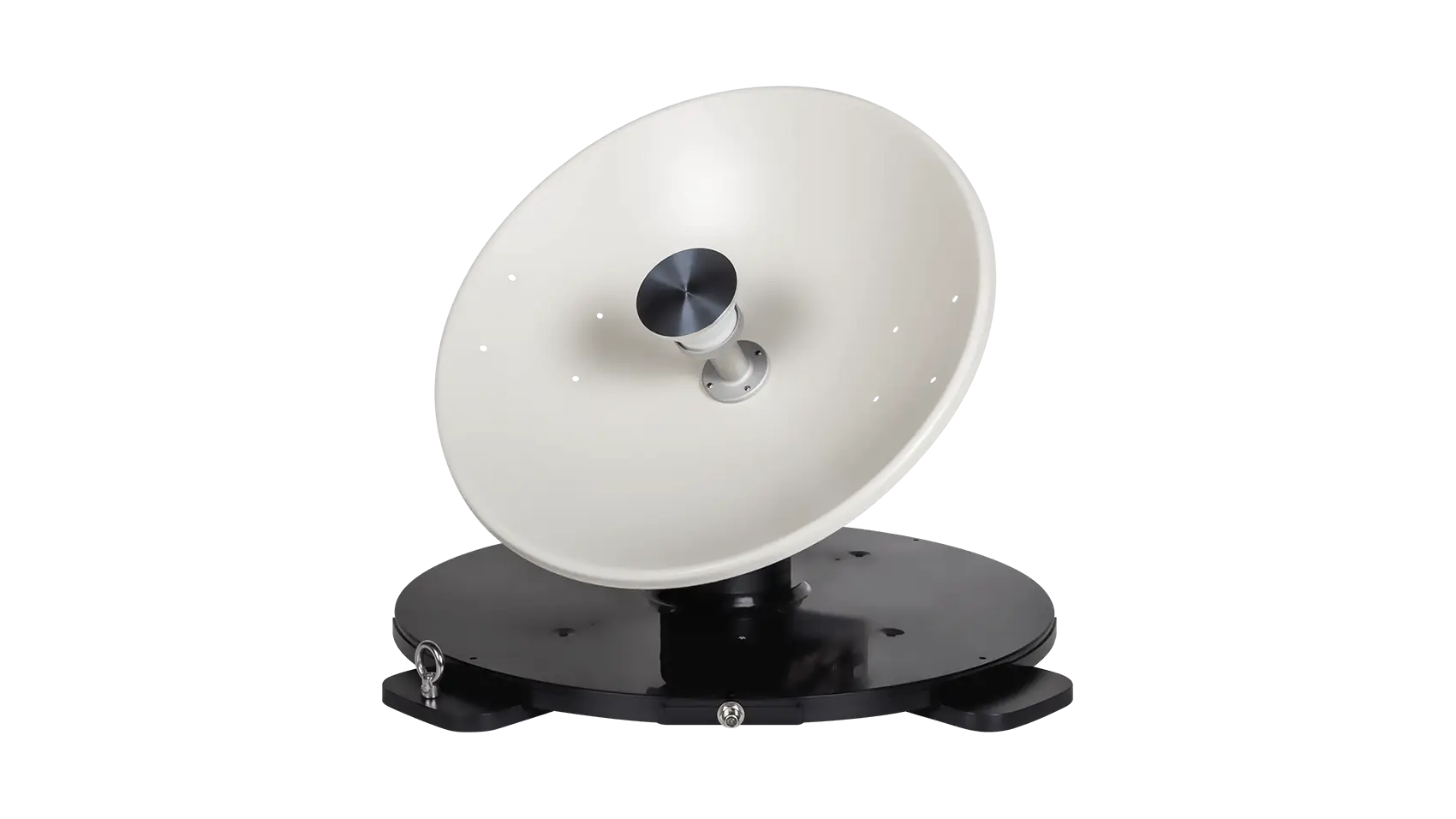

  • Antenna type: Parabolic antenna
  • LNB Type: Universal LNB
  • Maximum number of participants: 1
  • Frequency band: Ku band
  • Input frequency range: 10.7 GHz – 12.75 GHz
  • Polarization: V/H
  • Signal gain: 31 dBi @ 12.7 GHz
  • Minimum EIRP (footprint): 51 dBW
  • Elevation (inclination): 23° – 43°
  • Azimuth (rotation): 360°
  • 1,5-axis DC motor
  • Temperature range: -20° C – 70° C
  • Mirror size: 380 (Ø)

Programmed satellites

  • Astra 1 (19,2° East)

Power Supply

  • Power supply: via TV or receiver

Delivery

  • Campingman Portable Eco
  • Coaxial cable
  • Manual

Dimensions / weight

  • Dimensions: 450 x 430 x 450 mm (W/H/D)
  • Weight: 4,2 kg (net)

Identification data

  • Item No .: 1500178
  • EAN: 4046173107524

Downloads

Download all
Test report (Freizeitguide aktiv)
